Chlorine
Alphasense Chlorine gas sensors operate using proven fuel cell technology.
Sensors are available in the following sizes:
A: 20mm diameter, the industry standard size for portable gas detectors
B: 32mm diameter package, the best choice for fixed site application
D: miniature, with proven long-term performance, for the next generation of gas detectors
The Cl2 range provides OEMs with reliable sensors for use in a number of high volume applications. Strong signal levels combined with low zero current allows resolution to 20ppb and an operating range from +0 to 20ppm. The sensors are suitable for inclusion in fixed installation sensing heads and portable safety instruments.
These sensors have improved transient response to humidity changes compared to competitors’ equivalent sensors.
The Cl2 sensors offer our electrolyte leak-free guarantee and reliable long-term detection performance. The leakproof housing is moulded with a colour coded top for ease of identification.
Data sheets
Go to downloads page
| FILE NAME | DESCRIPTION | TYPE | DOWNLOAD LINK |
|---|---|---|---|
| CL2-D4 | Miniature | Data Sheet |  |

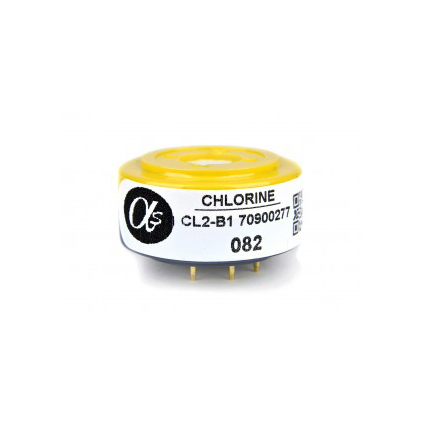

| CL2-B1 | Compact | Data Sheet | |
| CL2-A1 | Small | Data Sheet | |
